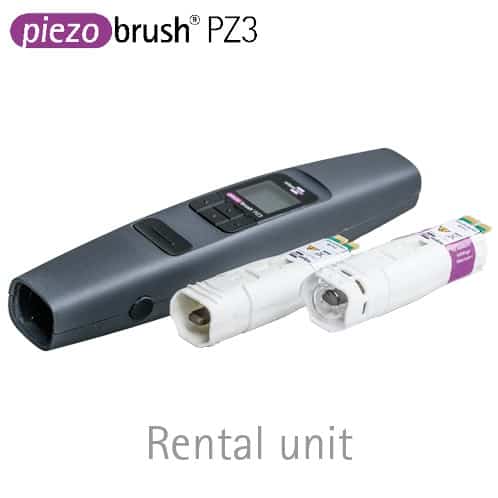

Rental unit piezobrush® PZ3

300,00  / 15 days

Rental unit

piezobrush® PZ3

The rental unit piezobrush® PZ3 contains the handheld plasma unit piezobrush® PZ3 for manual surface treatment with atmospheric pressure plasma and two additional modules. The Module Standard is for the treatment of non-conductive materials such as plastics. The Module Nearfield is used for the treatment of conductive materials such as stainless steel or CFRP.

The rental unit piezobrush® PZ3 contains:

Please select the start and end date of the rental period in the calendar. The minimum rental period is two weeks, the maximum rental period is six weeks.



Clear dates

SKU: 73612000 Categories: ,

Description

For a rental fee we will send you the piezobrush® PZ3 and you can test the device directly at your site in your individual working environment.

Many of our customers were convinced after the test phase. You can find selected field reports on our reference page.

The piezobrush® PZ3 Professional Set was developed as a compact plasma handheld device for use in laboratories, pre-development and assembly of small series. With a maximum power consumption of 18 W, the Piezoelectric Direct Discharge (PDD®) technology is used to generate cold active plasma with a low temperature. The heart of this portable plasma device is the TDK piezo plasma generator CeraPlas™ – a high-voltage discharge device for generating cold atmospheric-pressure plasma. Atmospheric-pressure plasma is used for highly efficient increase of surface energy on many materials and for germ and odor reduction.

Application examples:

◊ Activation and functionalization of surfaces of various materials
◊ Improvement of the wettability
◊ Optimization of gluing, painting, printing and coating processes
◊ Surface treatment of plastics, glass, ceramics, metals, semiconductors, natural fibers and composites
Ultra-fine cleaning and odor reduction

Detailed product information can be found on the product page.

Additional information

Electric connection:

110-240 V / 50-60 Hz

Power consumption:

max. 18 W

Weight:

110 g

Design:

Handheld unit with plug-in power supply, integrated fan

Volume:

45 dB

Plasma temperature:

< 50 °C

Treatment speed:

5 cm²/s

Typical treatment distance:

2 – 10 mm

Typical treatment width:

5 – 29 mm

Downloads

DatumBeschreibungSpracheDownload
2020Betriebsanleitung piezobrush® PZ3MLBetriebsanleitung
2020Broschüre piezobrush® PZ3DEBroschüre
2020Flyer piezobrush® PZ3 DEFlyer
2022Vergleich piezobrush® PZ2 und piezobrush® PZ3DEFlyer
2020Whitepaper: Operation Principle and CharacteristicsENWhitepaper
2021Whitepaper: Ozone controlENWhitepaper
2021Flyer - piezobrush® PZ3 im DentallaborDEFlyer
2021Flyer - piezobrush® PZ3 in the dental labENFlyer
2022Whitepaper piezobrush® PZ3: endurance test for standard moduleENWhitepaper
2022Aufbauanleitung PZ3 Stativ / Assembly instruction PZ3 standMLAufbauanleitung PZ3 Stativ / Assembly instruction PZ3 stand
