Pre-treatment before printing

Pre-treatment for printing using plasma

Pre-treatment for printing and coating using plasma has established itself as a standard process in all common printing processes such as digital printing, pad printing, screen or offset printing. The adhesion of the printing inks and varnishes to the surface is enormously improved by pre-treatment with plasma, which significantly increases the print quality. The surfaces of many materials such as metals, glass, ceramics and even natural materials such as wood and textiles are often very difficult to print on but are susceptible to plasma functionalization. Plasma pre-treatment allows many polymers with typical “non-stick” surfaces to be successfully printed and coated after plasma treatment.

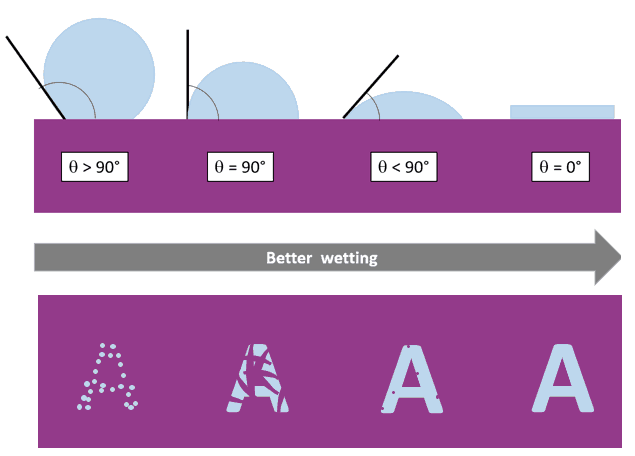

The picture below illustrates the interaction of surface energy, printing ink and plasma. In the upper picture we see a drop of ink applied to a surface and below that the print result. The first drop has a very large contact angle of more than 90° and therefore wets the surface very poorly, which has the effect that the ink contracts on the surface and does not wet evenly. The two drops in the middle already have a flatter contact angle, which improves the printing result accordingly. The best result is obtained when the contact angle is 0°, as then the ink drops wet the surface well and creates an even print image.

the interaction of surface energy, printing ink and plasma. In the upper picture we see a drop of ink applied to a surface and below that the print result.

Plasma processing achieves the surface functionalization effect through a combination of ultra-fine surface cleaning from organic contaminants, modification of the surface topography and deposition of functional chemical groups.

Plasma functionalization of surfaces can be performed at the atmospheric pressure using air or typical industrial gases including hydrogen, nitrogen and oxygen. It avoids expensive vacuum equipment or wet chemistry, which positively affects its costs, safety, and environmental impact. Fast processing speeds further facilitate numerous industrial applications.

Advantages of the pre-treatment for printing with plasma

Plasma cleans, strengthens and chemically functionalizes the surface. All these effects, which are required for a good printing result, are achieved simultaneously in a single step:

  • Ultra-fine cleaning, no residues
  • Better ink adhesion
  • High resistance to aging, handling, and weathering
  • Excellent colour brilliance
  • Gentle, non-destructive surface treatment
  • No wet chemistry
  • Air or cheap non-toxic working gases
  • Environmental friendliness
  • No expensive vacuum equipment
  • Fast processing speeds
  • Easy integration into existing production lines

Application examples

piezobrush® PZ3-i

Product launch piezobrush® PZ3-i

The highlight of this year’s trade show appearance at Bondexpo is the presentation of the compact integration solution piezobrush® PZ3-i for the first time ever. The cold plasma device is designed for integration into existing production lines and is therefore compact, safe, and efficient. Thus, it is ideally suited for pre-treatment prior to gluing, printing, and laminating.

Freiform Hologramm am Glasfaserende

Reference: University of Stuttgart

At the University of Stuttgart the plasma handheld device piezobrush® PZ3 is used for plasma activation in 3D printing for microoptics.

Logo Ritzi Industriedrucktechnik GmbH

Plasma in industrial printing

Ritzi Industriedrucktechnik GmbH uses the plasma handheld device piezobrush for the pre-treatment of PEI in industrial printing.

Printing on PTFE

InPrint 2019

At InPrint 2019 relyon plasma will show how better ink adhesion and highest print quality can be achieved using plasma technology in all common printing processes.

Integration of plasmabrush PB3 into Optomec Aerosol Jet UP300 Printer

Reference University of West Bohemia

The University of West Bohemia reports on the integration of the high performance plasma system plasmabrush PB3 into an aerosol jet system for 3D printing.
