Online Shop
Rental unit plasmacell

3.000,00  / 29 days

Sorry, this product is in your country only available via our sales partners.

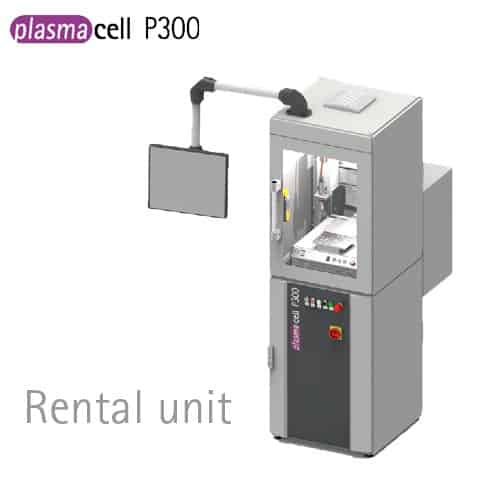

Rental unit

plasmacell P300

With the rental unit plasmacell you get for the rental period an independent and compact plasma system that provides a perfect working environment for the simple and efficient plasma treatment of your workpiece. By combining and housing a high performance plasma device, a high voltage source and an XYZ robot, you get a semi-automated system that meets all safety guidelines.

The plasmacell rental unit consists of the following components:

  • plasmabrush® PB3 incl. power source PS2000, HV connection cable, plasma generator PG31 and nozzle
  • XYZ portal (working range 300/300/100mm) in a 19″ rack
  • Touch screen
  • Teach panel

Also included in the rental fee as required:

  • Module integrated suction
  • Module Compressor
After ordering, a member of our application engineering staff will contact you to configure your rental system according to your individual wishes and needs.

Please select the start and end date of the rental period in the calendar. The minimum rental period is four weeks, the maximum rental period is twelve weeks.

SKU: 1000608500 Categories: ,

Description

For a rental fee we will send you the plasmacell P300 and you can test the device directly at your premises in your individual working environment. If the plasmacell P300 has convinced you during the test phase, we will credit the rental fee to the purchase price. Otherwise, you can simply return the rental unit to us at the end of the test phase.

Many of our customers were convinced after the test phase. You can find selected application reports on our reference page.

The plasmacell is an independent and compact plasma system that provides a perfect working environment for simple and efficient plasma treatment of your workpiece. By combining and enclosing a high performance plasma device, a high voltage source and an XYZ robot, you get a semi-automated system that complies with all safety regulations.

The plasmacell is mainly used in the field of research and industrial development, since the treatment process can be reproduced exactly at any time thanks to automation by means of a robot. The plasmacell thus guarantees consistent quality at all times. In addition, a comprehensive software system is pre-installed which enables the entire process to be monitored.

Application examples:

  • Cleaning of metal, glass and plastics
  • Surface activation and functionalization for optimized wettability
  • Plasma-assisted adhesive joints
  • Plasma-induced reduction of metal surfaces
  • For small to medium components and batches
  • Small series and prototype construction
  • Advanced engineering and development
  • Universities, laboratories and research institutes
  • In-House Sampling

Further information about the plasmacell P300 can be found on the product page.

Additional information

Electrical connection

400V oder 230V, 50-60 Hz

Protection class

IP54

Dimensions

700 mm x 1.100 mm (ca. 0,8 m²)

Plasma temperature

few hundred to few thousand degrees

Typical treatment distance

5-20 mm

Typical treatment width

10-25 mm

Maximum speed XY

0,1 – 600 mm/sec

Workpiece size

260 mm x 300 mm x 200 mm

Power supply

220 V – 240 V AC / 50-60 Hz / max. 10 A

Maximum weight

270 kg

Minimum height

1950 mm

Download

DatumBeschreibungSpracheDownload
2016plasmacell P300 FlyerDEFlyer
2019plasmacell BetriebsanleitungDEBetriebsanleitung
